(If you haven’t already, check out my Day -1 post for context on this project!)

LangJam GameJam 2025: Day 1

Things went okay today! I learned a lot about rendering — specifically, combining pipelines in an efficient way — but I had much less time to work on it today.

This blog post will be briefer because I am very sleepy.

Here is the aforementioned castle: Schloss Lichtenstein. Beautiful.

Poor connection.

Milestones

Rendering SVGs (c11fc8b)

Originally, I had ambitiously planned to use Blitz, an HTML renderer, to render arbtirary HTML/CSS content into my grid cells.

However, after letting an AI wrestle with this task for long enough, I realized that this was perhaps overambitious: Blitz is really designed to render an entire webpage, not tiny snippets of HTML inside a larger rendering context.

Instead, I decided to use usvg, resvg and tiny-skia to render SVGs into a buffer I can share with the shader. I’m also using a basic pixel cache to make performance tolerable.

At this point, I officially retired by tiny hexadecimal digit renderer, instead opting to use SVGs to render cell values.

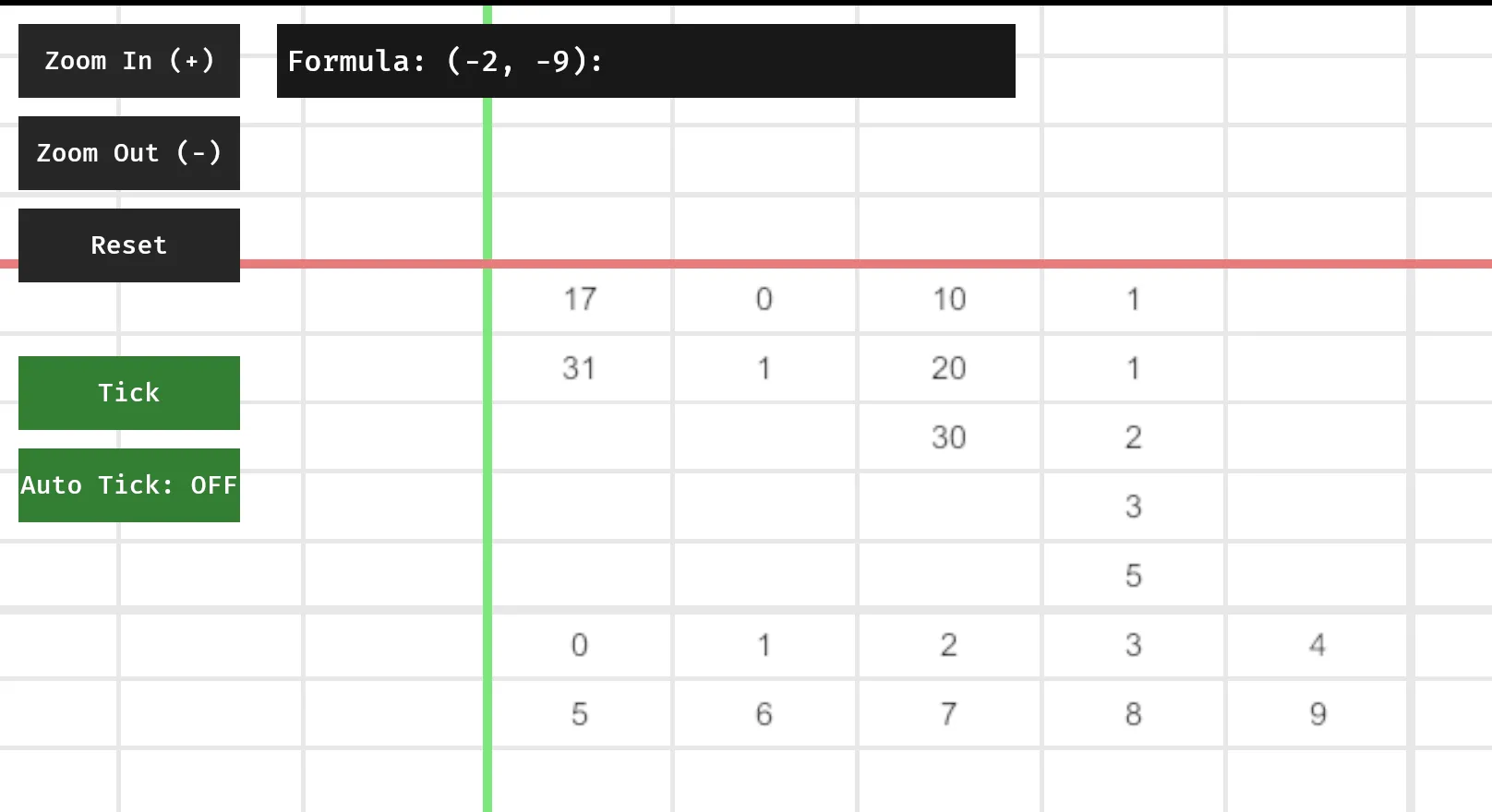

Editing cells (5de8ae0)

Next, I made things interactive in a very basic way: I can now modify the contents of a single selected cell.

This is currently implemented extremely naively, but it’s enough to play with things in real-time. Thinking through this, I fear I may need to add yet another dependency to handle text input properly — and I may need to look beyond the Bevy Ecosystem for that. Right now, I’m most seriously considering bevy_egui, at the risk of my rendering pipeline becoming comically layered: (egui -> bevy -> resvg -> tiny-skia -> wgsl).

At this stage, I was just rendering the computed value of each cell, so there was no way to look at a formula without selecting a cell. This inspired me to implement lenses.

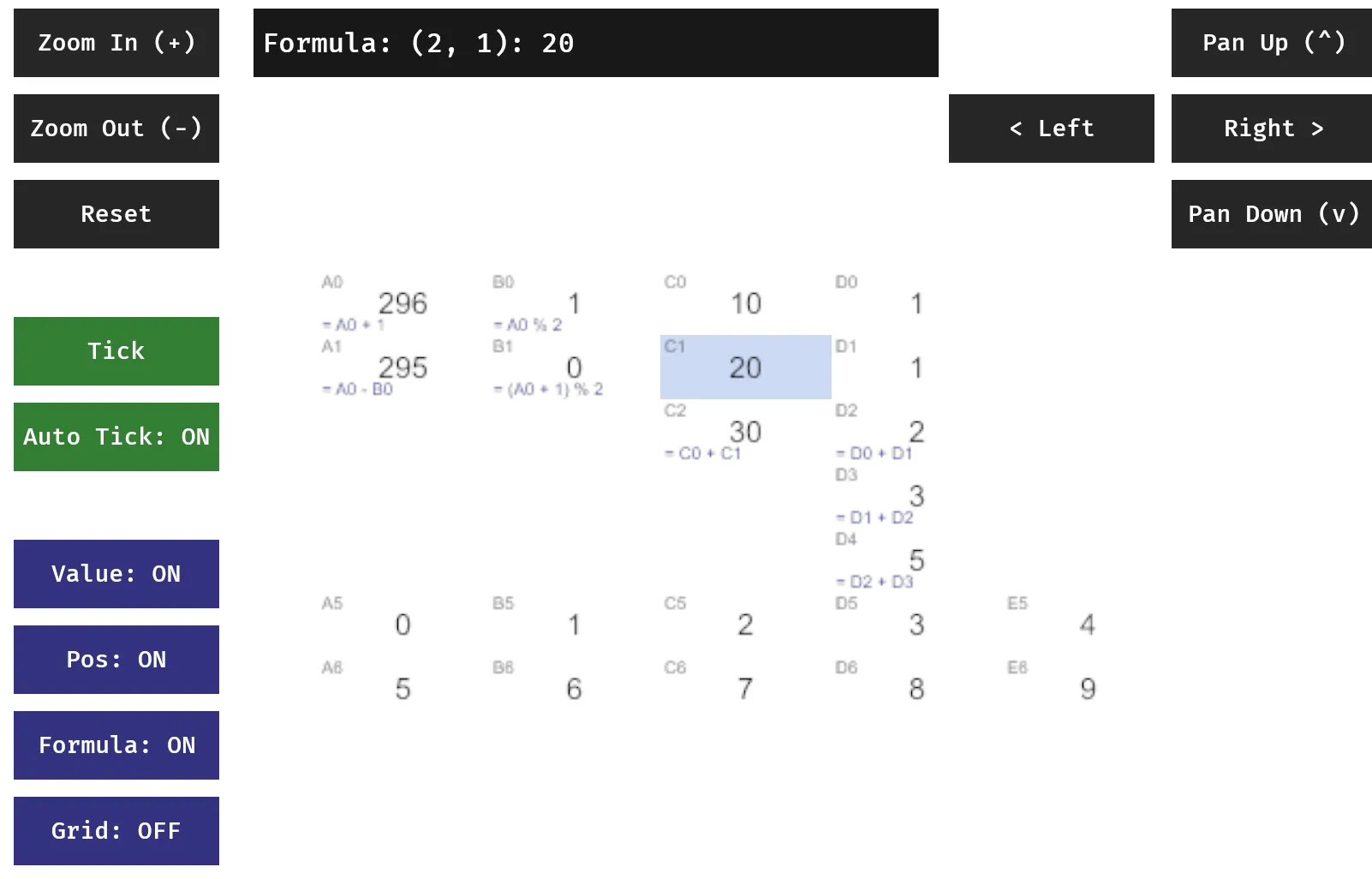

Lenses (5de8ae0)

Lenses are a very simple way of selecting what parts of a cell should be rendered.

fn generate_svg(cell: &crate::cell::Cell, col: i32, row: i32, lens_state: &LensState) -> String {
    let mut elements = String::new();

    // 1. Base Content (Value or Rich)
    let is_rich = (col == 0 && row == 2) || (col == 1 && row == 2);

    if is_rich && lens_state.show_value {
        // Use custom SVG body for rich cells
        if col == 0 && row == 2 {
            elements.push_str(r##"<rect width="80" height="30" fill="#e0f7fa"/><text x="5" y="20" font-family="sans-serif" font-size="12" fill="#006064">Status: OK</text>"##);
        } else if col == 1 && row == 2 {
            elements.push_str(r##"<circle cx="15" cy="15" r="8" fill="#4caf50"/><text x="30" y="20" font-family="sans-serif" font-size="12" fill="#333">Active</text>"##);
        }
    } else if lens_state.show_value {
        // Default text rendering
        let text = match &cell.value {
            evalexpr::Value::Int(i) => i.to_string(),
            evalexpr::Value::Float(f) => format!("{:.2}", f),
            evalexpr::Value::String(s) => s.clone(),
            evalexpr::Value::Boolean(b) => b.to_string(),
            evalexpr::Value::Empty => "".to_string(),
            evalexpr::Value::Tuple(_) => "Tuple".to_string(),
        };
        elements.push_str(&format!(r##"<text x="40" y="20" font-family="sans-serif" font-size="14" fill="black" text-anchor="middle">{}</text>"##, text));
    }

    // 2. Position Lens
    if lens_state.show_position {
        let coord_text = crate::formula::coord_to_name(col, row);
        // Top-left, small light gray
        elements.push_str(&format!(r##"<text x="2" y="8" font-family="sans-serif" font-size="8" fill="#aaaaaa">{}</text>"##, coord_text));
    }

    // 3. Formula Lens
    if lens_state.show_formula && cell.is_formula {
        // Bottom, small blue
        let formula = cell.raw.replace("<", "<").replace(">", ">").replace("&", "&");
        elements.push_str(&format!(r##"<text x="2" y="28" font-family="sans-serif" font-size="8" fill="blue">{}</text>"##, formula));
    }

    format!(r##"<svg xmlns="http://www.w3.org/2000/svg" width="80" height="30">{}</svg>"##, elements)
}

I want to make this more dynamic soon, as I can imagine some really cool interactions with a system that changes how it is being rendered during runtime, but these static lenses will be good for now.

A simple model could be something like this:

{
    value: 10,
    render: (v) => `<text>${v}</text>`,
}

But I want the language to be ergonomic… Maybe a good use for the lenses editing a dimension instead of using a dictionary?

Small, notable fixes

• Moved to a sparse representation of the grid
• Added colors, tracking lines to the axis
• Made grid toggleable

What’s in store for tomorrow

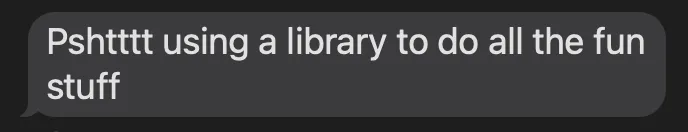

I’m being heckled by some rabble to actually build the fun parts of a language.

(A message from an anonymous reader)

I feel like I’ve been using a little too much AI so far, and like many of my colleagues, am beginning to fear the reliance I have on GitHub Copilot.

Tomorrow, I am challenging myself to channel my PL energy, and build a simple language by hand tomorrow, sans all AI assistance. I’m considering shedding the Excel coordinate system, and certainly want to add better support for dynamic references. I want to also think through ranges, and using them as a dictionary of context.

I know I keep saying that I want to build the actual game, but, this time I really mean it. I can at least get the Game of Life tomorrow… right?

(Spoiler: I only kinda did it on Day 2)
